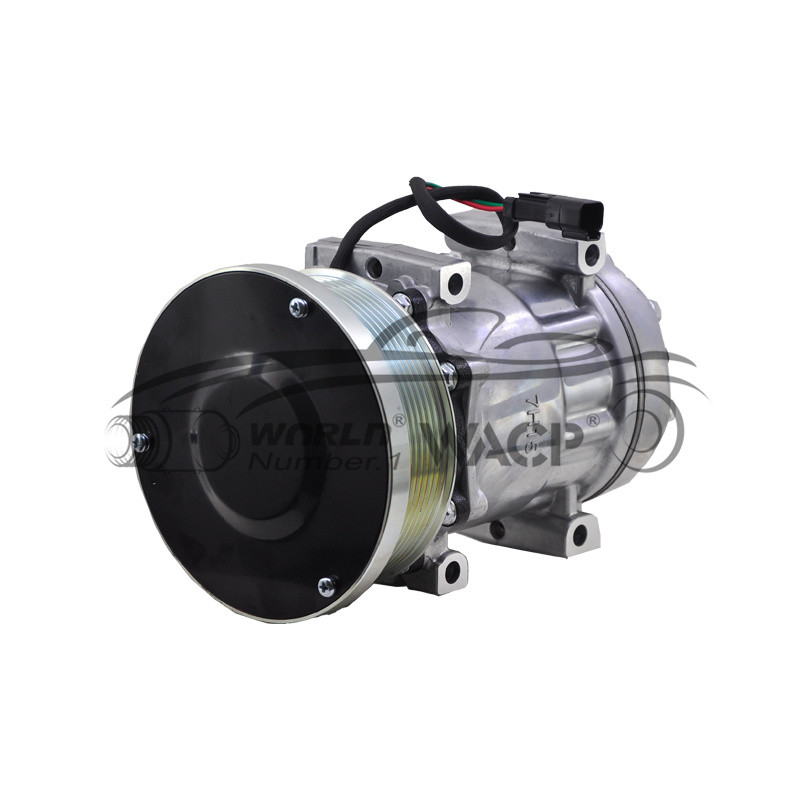

7H15 8PK Vehicle Air Compressor 24V For Caterpillar Excavator
SD7H154769 WXTK303
Parameter:
Model Number
| WXTK303
|
Car Model
| For Caterpillar Excavator 992K (H4C) 24V
|
Type
| Ac Compressor
|
Year Model
| N/A
|
Compressor type
| 7H15
|
OE NO.
| SD7H154769/1630872/58778/3949671/
|
The working principle of a car air conditioning compressor involves
the compression of refrigerant to increase its temperature and
pressure. This process is essential for the proper functioning of
the air conditioning system in a vehicle.
The compressor is driven by the engine through a belt and pulley
system. When the air conditioning is turned on, the compressor is
engaged, and refrigerant gas is drawn into the compressor from the
evaporator.
Inside the compressor, the gas is compressed by a piston or
rotating vane mechanism. As the gas is compressed, its pressure and
temperature increase significantly. This high-pressure and
high-temperature gas is then discharged from the compressor and
sent to the condenser.
The condenser is located in front of the vehicle and is responsible
for cooling down the high-pressure gas. It consists of a network of
tubes with fins that allow heat from the refrigerant to dissipate
into the surrounding air. As the gas cools down, it condenses into
a high-pressure liquid.
The high-pressure liquid refrigerant then flows into the expansion
valve or the orifice tube. This component regulates the flow of
refrigerant into the evaporator. By restricting the flow, the
pressure of the refrigerant is reduced, causing it to expand
rapidly. This expansion results in a drop in temperature, making
the refrigerant cold.
At this point, the cold refrigerant enters the evaporator, which is
usually located inside the dashboard of the vehicle. The evaporator
acts as a heat exchanger, allowing air to pass through its fins. As
the air comes in contact with the cold refrigerant, heat is
transferred from the air to the refrigerant, cooling down the air.
The refrigerant, now heated, turns back into a gas and goes through
the compressor again to repeat the cycle. This continuous
circulation of refrigerant and heat exchange between the
refrigerant, air, and vehicle components ensures the cooling effect
of the car air conditioning system.
Overall, the compressor plays a vital role in the car air
conditioning system by compressing the refrigerant and enabling the
cooling process to take place effectively.
AC Compressor is cool,not cold
Car air conditioner compressors are indeed cool, but not to be
mistaken for being cold. These vital components play a crucial role
in the efficient functioning of car air conditioning systems.
Car air conditioning systems are designed to regulate the
temperature and humidity inside the vehicle cabin, providing a
comfortable driving experience regardless of the weather conditions
outside. The compressor is a key part of this system, responsible
for pressurizing and circulating the refrigerant throughout the
system.
When the air conditioning is turned on, the compressor is engaged
to compress the refrigerant gas, which is typically a blend of
chemicals such as R134a or R1234yf. As the refrigerant is
compressed, its temperature increases significantly due to the
compression process. Although the compressor becomes warm during
this process, it does not emit cold air directly.
The compressed refrigerant then travels to the condenser, which
acts as a heat exchanger. Here, the hot compressed gas dissipates
its heat to the external environment. As a result, the refrigerant
transitions from a gas to a high-pressure liquid form. It is then
directed to the receiver drier or accumulator, which removes any
moisture or impurities present in the refrigerant.
From the receiver drier or accumulator, the refrigerant flows to
the expansion valve or orifice tube. These devices help reduce the
pressure of the refrigerant, causing it to expand rapidly, which in
turn decreases its temperature. The refrigerant now enters the
evaporator, situated in the car's dashboard or inside the air
conditioning unit.
The evaporator is where the magic happens. As the low-pressure
liquid refrigerant passes through the evaporator, it absorbs heat
from the surrounding air. This heat transfer process cools down the
air, which is then blown into the vehicle cabin through the vents,
providing a refreshing and comfortable atmosphere. As the
refrigerant absorbs heat, it evaporates back into a low-pressure
gas state.
Finally, the low-pressure gas refrigerant returns to the
compressor, where the cycle starts again. The compressor's role is
crucial in maintaining the pressure and flow of refrigerant
throughout the system, ensuring consistent cooling performance.
Although the compressor is an essential part of the air
conditioning system, it does not directly release cold air.
Instead, it compresses the refrigerant gas, raising its
temperature, which is then cooled down through the subsequent
processes within the system. The cooled air is ultimately released
into the car cabin, providing relief from the heat.
In conclusion, while car air conditioner compressors are indeed
cool, they do not emit cold air directly. Their main function is to
compress the refrigerant gas, keeping the air conditioning system
operating effectively. The compressor's contribution to the
circulation and conditioning of air within the vehicle cabin is
vital, resulting in a comfortable and enjoyable driving experience.
