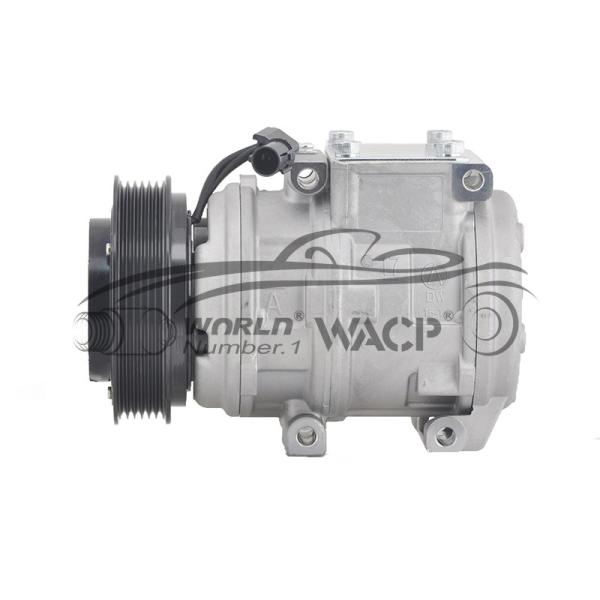

977012M000 977012M100 Auto AC Compressor For Hyundai Genesis
WXHY058
The automobile air conditioning compressor is the core component of
the automobile air conditioning system. It achieves rapid cooling
of the air in the car by compressing low-pressure cold gas into
high-pressure and high-temperature gas. Our compressors have the
advantages of efficient refrigeration capacity, low energy
consumption, low noise and reliability, providing drivers with a
comfortable driving experience. We are committed to providing
customers with high-quality, high-performance automotive air
conditioning compressors and contributing to the comfortable
driving experience in the automotive industry.
Parameter :
Model Number
| WXHY058 |
Car Model
| For Hyundai Genesis2.0/3.8 |
Type
| AC Compressor |
Year Model
| 2008-2014 |
OE No.
| 977012M000/977012M100/158398 |
| Note | If you need assistance to make sure that this part will fit your
vehicle.Please send us the photo of your old product .The OEM
and/or the year,make model and engine size of your vehicle so that
we may confirm it for you.We also recommend using the compatibility
chart in order to make sure that this product will fit your
vehicle.
|
Goods Picture
General system
Each system may vary slightly per vehicle. For example, some may
include an orifice tube whereas others have an expansion valve.
This means the system has up to 7 components including:
1.Compressor: compresses cool refrigerant gas into hot refrigerant
gas
2.Condenser and fan: converts hot refrigerant gas into a hot liquid at high
pressur
3.Receiver Dryer: temporarily stores refrigerant when not needed by
the system
4.Expansion (TX) Valve / Orifice Tube: regulates refrigerant flow /
creates pressure drop
5.Evaporator: cools air before entering cabin
6.Heater Core: warms air before entering cabin (uses engine
coolant rather than refrigerant)
7.Blower Motor: fans hot or cold air into the cabin
Piston-Type Compressors
The automotive air conditioning compressor is a crucial component
of the AC system, responsible for compressing and circulating the
refrigerant. It consists of several key parts that work together to
achieve effective cooling.
1. Compressor Housing: The outer shell of the compressor, designed
to enclose and protect the internal components.
2. Compressor Pulley: A pulley attached to the front of the
compressor, connected to the engine via a belt. It transfers power
from the engine to drive the compressor.
3. Clutch Assembly: The clutch allows the compressor to engage and
disengage as required. It consists of an electromagnetic coil,
friction plates, and a hub.
4. Swash Plate: This component converts the rotational motion of
the compressor shaft into a reciprocating or up-and-down motion. It
is responsible for compressing the refrigerant.
5. Piston: Linked to the swash plate, the piston moves up and down
within the compressor cylinder to compress the refrigerant gas.
6. Reed Valves: These one-way valves control the flow of
refrigerant into and out of the cylinder. They prevent backflow and
ensure efficient compression.
7. Oil Separator: Located within the compressor housing, it
separates the refrigerant oil from the refrigerant gas before it
leaves the compressor.
8. Shaft Seal: This seal prevents refrigerant from leaking out and
contaminants from entering the compressor. It ensures the integrity
of the system.
9. Control Valve: Some compressors have a control valve that
regulates the flow of refrigerant based on the cooling demands of
the vehicle.
10. Mounting Brackets: These brackets secure the compressor to the
engine or chassis, keeping it stable and in the correct position.
Each of these components plays a crucial role in the operation of
the automotive air conditioning compressor. Their proper
functioning ensures efficient cooling and overall performance of
the AC system in vehicles.
