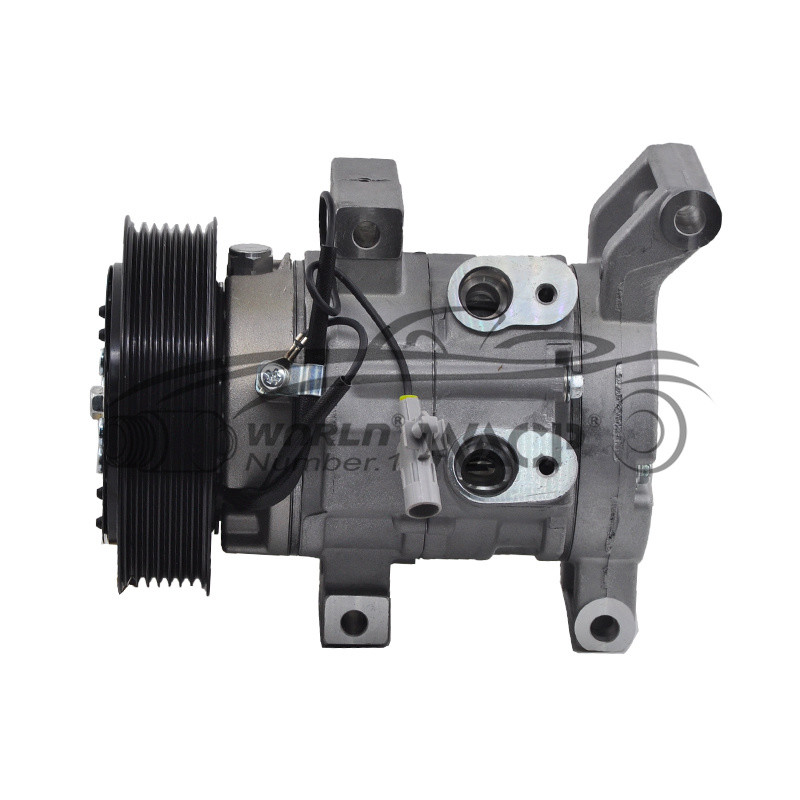

2473006840 Auto Air Condition Compressor For Toyota HiluxVigo 2003-2007 WXTT016

Parameter:

Compressor Process

1.Piston compressor:As the swash plate fixed on the shaft rotates,

the piston reciprocates. It has a complex structure, is light in weight,

is easy to install in a small engine, and has a short stroke distance.

2.Rotary compressor:The stroke distance is short, the balance is good,

and it generates heat due to moisture. It lacks power at low speeds

and consumes high horsepower at high speeds.

3.scroll compressor:Small in size and light in weight, it can achieve high-speed rotation.

The vortex rotates together with the gap in front of

the vortex disk to generate pressure.

Compressors and Mount & Drive:

Mount & Drive

Consists of a bracket to mount the compressor to the engine, a belt idler pulley, compressor drive belt and possibly and extra drive pulley for the crankshaft.

Compressor Mount

Manufactured of either plate, cast iron, steel or aluminium, this bracket should exhibit

excellent noise absorption qualities especially if using a piston type compressor.

Idler Pulley

A small pulley normally used in conjunction with a belt adjusting mechanism, also used when a belt has a long distance between pulleys to absorb belt vibrations.

Drive Pulley

Some vehicles do not have an extra pulley to accommodate an A/C drive belt, in these

cases an extra pulley is bolted onto the existing crankshaft pulley.

Air Conditioning Compressor

The air conditioning compressor is generally driven by the engine via a V-ribbed belt. It compresses or circulates the refrigerant in the system. There are different types of air conditioning compressors.

It is crucial to match the size of the compressor with the size of the system.

To ensure proper lubrication, the compressor is filled with a specific oil, which also circulates through the air conditioning system along with the refrigerant.

Instructions For The Tnstallation Of AC Compressors

Before installing the new AC compressor, it is important to flush the refrigerant

circuit to remove any contaminants and foreign bodies. Depending on the level of contamination,

it is recommended to use refrigerants R134a or R1234yf, or a special flushing solution.

However, it is not possible to flush air conditioning compressors, filter-driers (accumulators),

and expansion or throttle valves. Since system contamination is always assumed or

cannot be ruled out when the compressor is defective, the system must be flushed when replacing these components.

It is crucial to ensure that there are no residues of the flushing solution remaining in the system.

If necessary, the refrigerant circuit should be dried using nitrogen.

FAQ:

1. who are we?
We are based in Guangdong, China, start from 2007,sell to South America(20.00%),Mid East(18.00%),Eastern Europe(15.00%),Domestic Market(13.00%),Southeast Asia(10.00%),North America(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Central America(5.00%),Africa(2.00%),South Asia(1.00%),Oceania(1.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Variable Displacement AC Compressor/Piston AC Compressor/Scroll AC Compressor/Rotary Vane AC Compressor/Automotive Air Conditioning Clutch

4. why should you buy from us not from other suppliers?
Guangzhou WeiXing automobile air conditioning parts Co., Ltd is focused on providing high-quality automotive air-conditioning compressors, including car series, truck series, heavy duty truck series and bus series. Our product line is very rich, with more

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese

Guangzhou Wei Xing Automobile Air Conditioning Parts Co., Ltd.

        Guangzhou Wei Xing automobile air conditioning parts Co., Ltd. was founded in 1998, is an automobile air-conditioning compressor factory, 20 years specializing in automotive air-conditioning compressor production, research and development, processing services.

        Stable quality and professional services have been recognized and supported by customers in more than 50 countries all over the world. In order to meet the needs of customers and better service customers, the company set up sale shop in 2005, the main sales of own brand "WNRLN" and foreign well-known brands of compressors and automotive air-conditioning systems related accessories.

       With the globalization of the world and the development of the Internet, the company began to open the official website in 2015 to realize the diversification of online and offline sales,allowing customers to have a better shopping experience. In the past 20 years, we have developed a professional technical team and sales team to provide professional overall solutions and provide the whole set of air-conditioning design and production services. Professional attention enables us to go further, and it is our mission to bring China's good quality to the whole world.

Your Best Choice！

At our automotive air conditioning compressor company, we are dedicated to providing exceptional service to our customers. Our service philosophy revolves around three key principles:Service, Quality Assurance,customer satisfaction.

First and foremost, we are committed to responsiveness in our customer service approach. We recognize that issues with air conditioning compressors can arise unexpectedly and may require urgent attention. That's why we have established a dedicated customer support team that is available around the clock to address any concerns or inquiries. Whether it's troubleshooting technical issues, providing guidance on installation and maintenance, or processing warranty claims, our team is always ready to assist our customers promptly and efficiently."After-sales service make permanent customer".

Secondly,we prioritize reliability in everything we do. We understand the critical role that air conditioning compressors play in the functionality of vehicles, especially in hot climates or during long journeys. Therefore, we ensure that our products are built to the highest standards of quality and durability. From the materials we use to the manufacturing processes we employ, reliability is at the forefront of our operations. Additionally, we offer comprehensive warranty coverage and after-sales support to instill confidence in our customers regarding the performance of our compressors.

Furthermore,We closely monitor market trends and customer feedback to identify areas for improvement and innovation. By staying at the forefront of technological advancements, we aim to deliver products that exceed our customers' expectations and set new industry standards.

In addition to these core principles, we place a strong emphasis on building long-term partnerships with our customers. We believe that open communication, mutual respect, and trust are essential for fostering successful business relationships. We actively seek feedback from our customers and use it to drive continuous improvement in our products and services. By aligning our goals with those of our customers and working collaboratively towards shared success, we aim to create value and sustainable growth for both parties.

We aim to be the preferred choice for automotive air conditioning solutions globally.
